FIBC Liner

FIBC Liner

Explore our high-quality FIBC liners, specially designed to optimize the functionality of your bulk bags. These liners provide an extra layer of protection, ensuring that your valuable materials stay secure and contamination-free during transport and storage.
  • High-quality, food-grade material for safe handling.
  • Multiple thickness options for added strength and protection.
  • Customizable liner sizes to fit your specific FIBC.
  • Form-fit or tubular designs for easy installation.
  • Temperature-resistant material suitable for a range of environments.
Products Inquiry

Latest From Gallery

Elevate Your Standards with Vivera

Oxygen Barrier
Moisture Barrier
Anti-seepage
Chemical Resistance
Recyclable Materials
Safety Factor

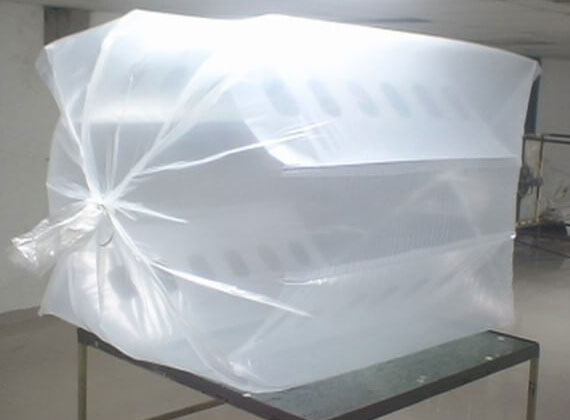

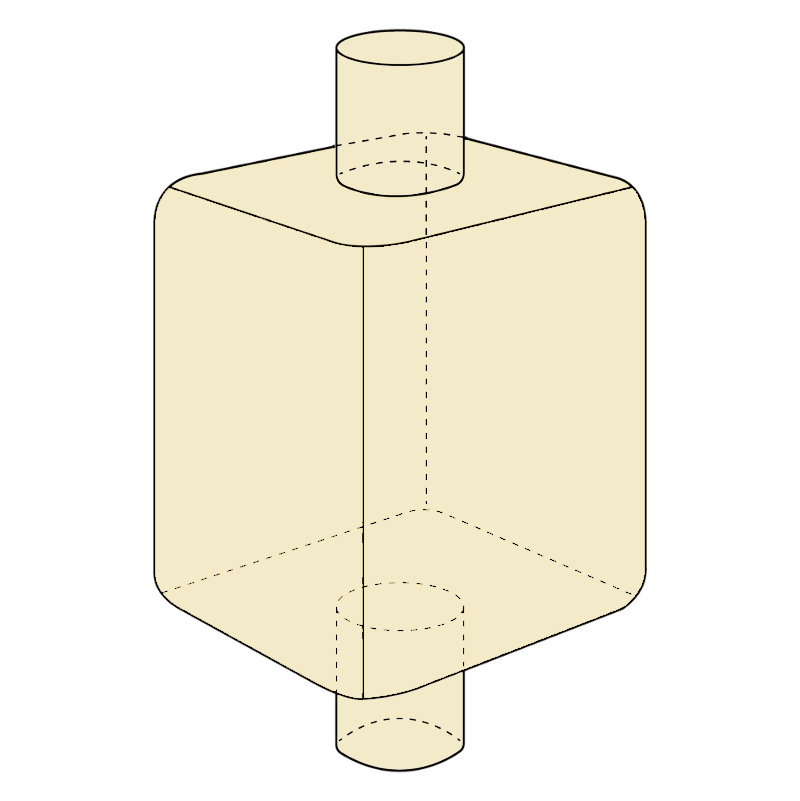

Form Fit Liner

Form-fitting liners precisely match the shape of the FIBC’s body, down to the filling and discharge spouts. Form-fit liners enhance the functionality of the bags and shield the packaged goods from contamination during handling, storing, and transportation. Liner filling and discharge spouts can be manufactured specifically to the customer’s size requirements.Form fit liners reduce tearing and twisting, increases the bag’s stability and stackability, and improves compatibility with filling equipment.

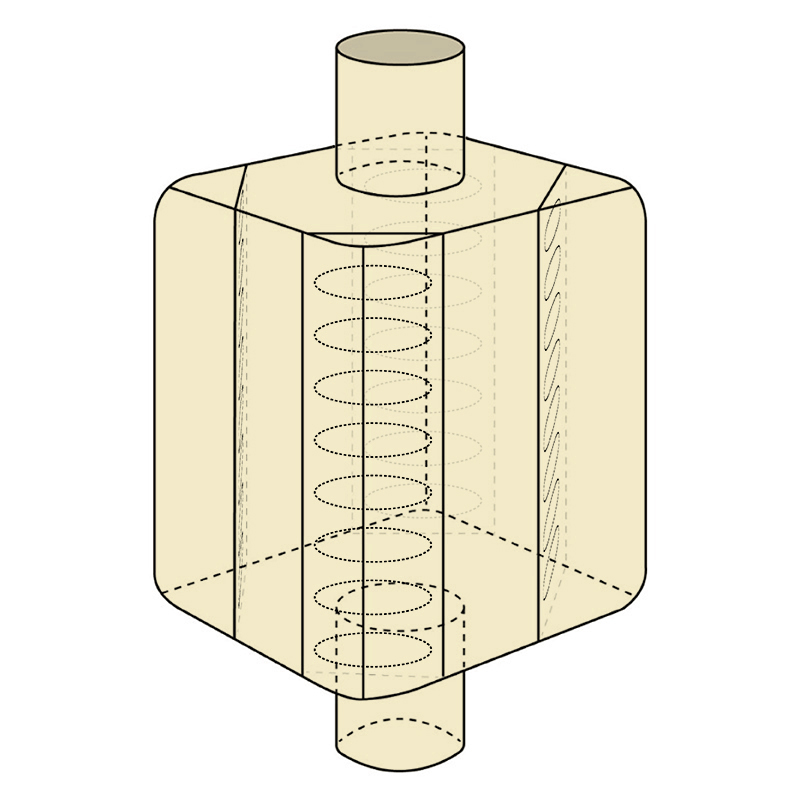

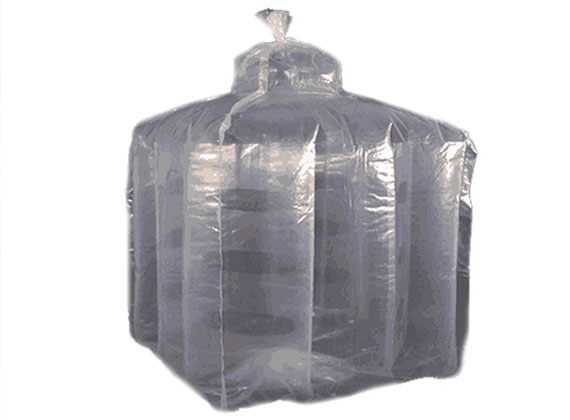

Baffled Liner / Q Bag

The form-fit baffle design can provide superior package performance and, at times, reduce storage and shipping costs. Baffled liners allow a standard bulk bag to maintain a square shape. The liner is form fitted to the bag and utilizes internal baffles to prevent bulging that could result in a rounded footprint. The square shape promotes greater bag stability and stack ability.
  • Increased FIBC stack-ability
  • Increased stability
  • Can hold up to 20% more product in a given space
  • Protection from contamination
  • Formed spouts for filling and discharge

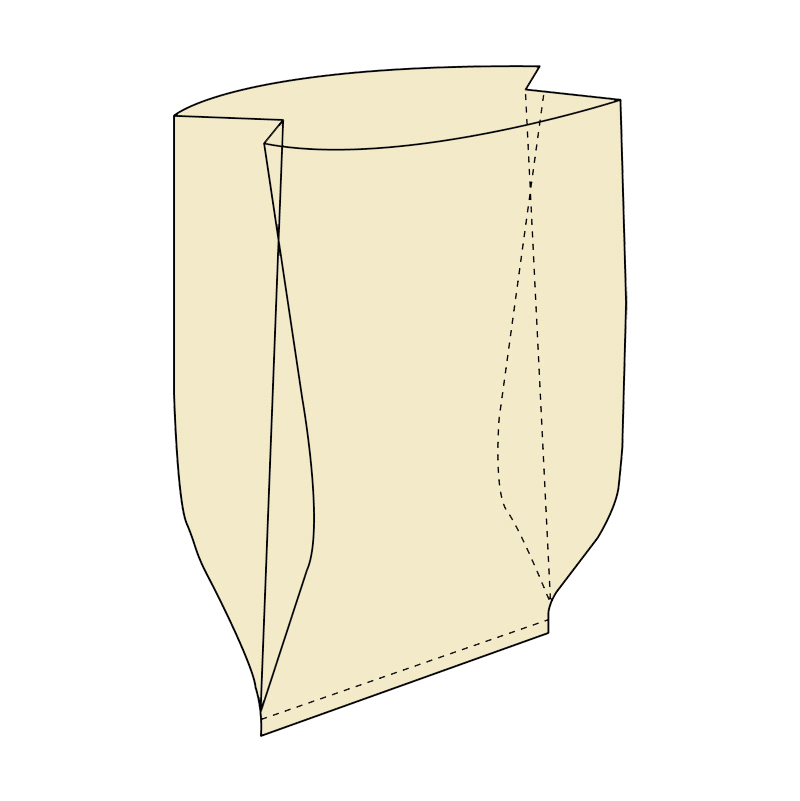

Gusseted Bottom Sealed

Expound the actual teachings of the great explorer of the truth, the master-builder of human happiness. No one rejects, dislikes, or avoids pleasure itself, because it is pleasure, but because those who do not know how to pursue.

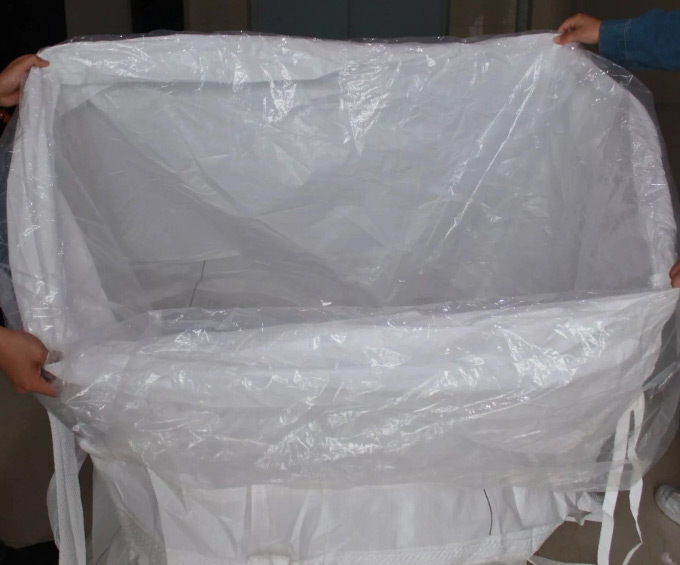

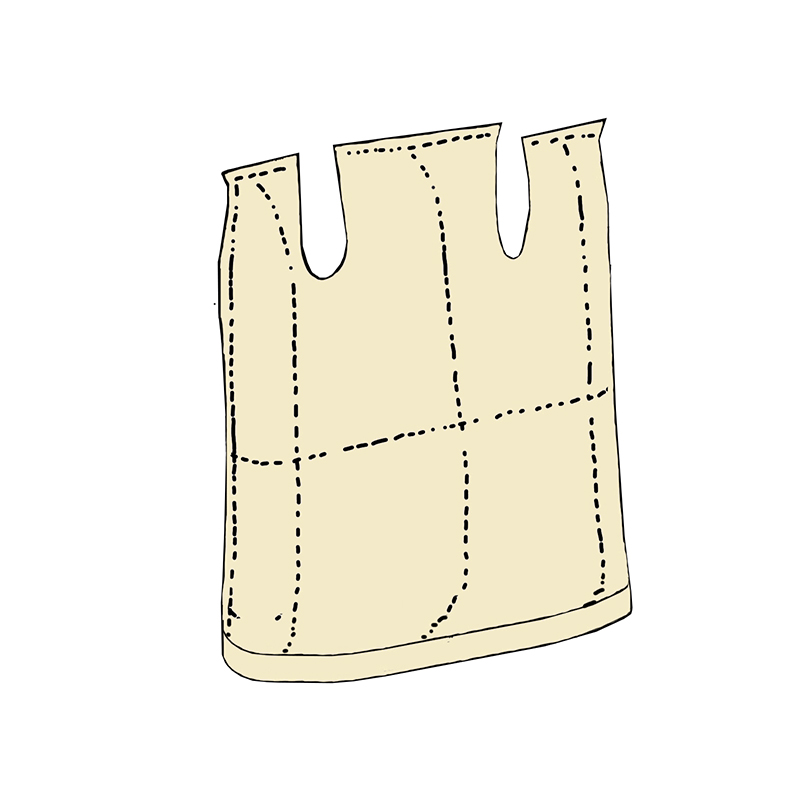

Suspended Liner

These liners are primarily used in one loop bags, they are fixed to the outer PP bag where the fabric is joined to create the lifting loop of the bag. They can also have perforation to let out some air at time of filling.
  • Can help with high-speed filling
  • Improved handling of the bag and product
  • Compatible with automatic filling machine

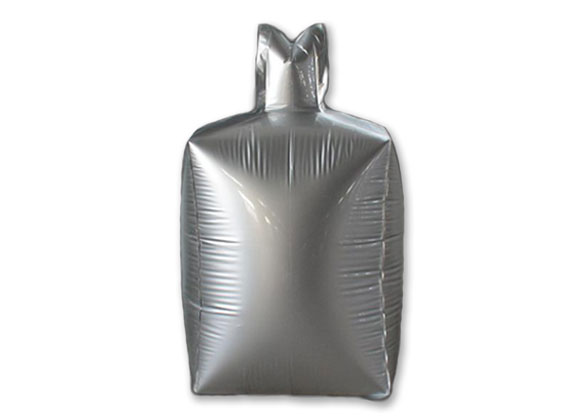

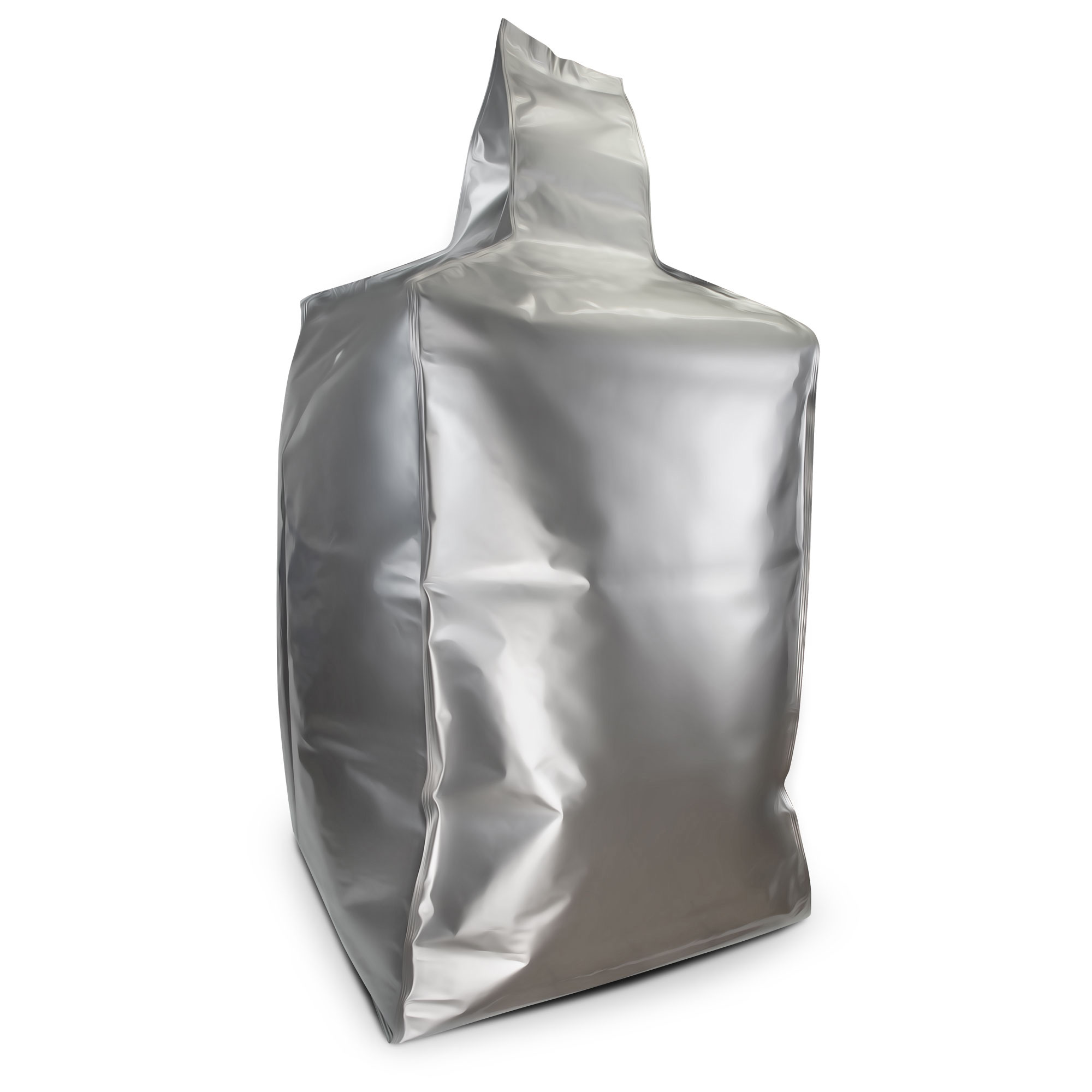

Aluminium Liner

Form shaped aluminum liners, also known as foil liners, improve filling, discharging, handling and stability of the outside of the bag. Foil liners offer great moisture, oxygen, and UV protection and are compatible with a wide variety of bulk bags.
  • Provides Moisture/ Oxygen Barrier
  • Prevents Ingress of UV Light
  • Prevents Contamination
  • Improves Filling & Discharge
  • Can withstand higher temperatures

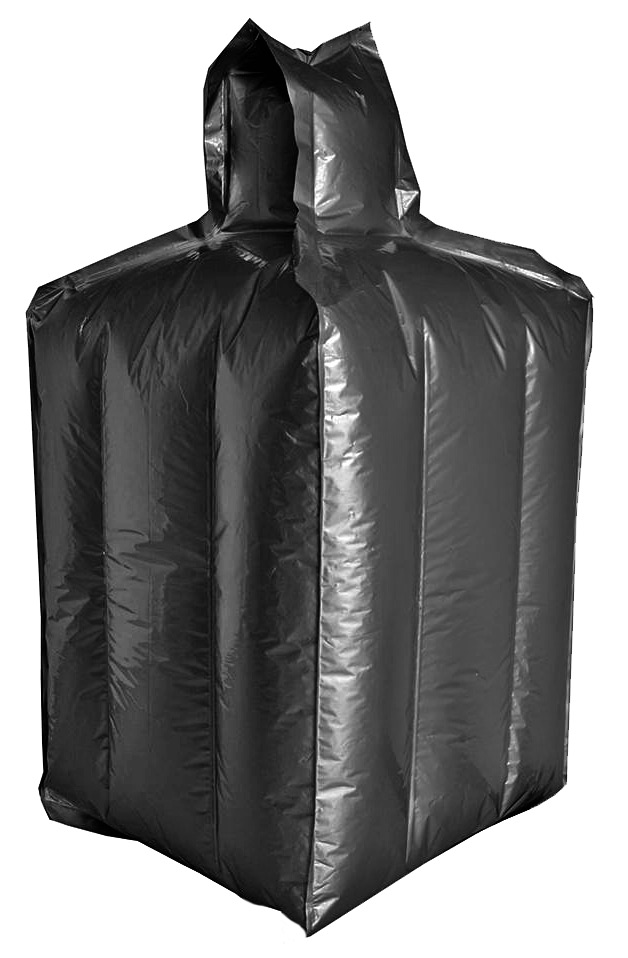

Liner Properties

These are compatible with Type B, C & D big bags. These liners are important for materials that are flammable in nature and vulnerable to static build-up. They come in three major types:
  • Type-L1 (Conductive): Inner liners made from materials with surface resistivity less than or equal to 1.0 x 10^7 Ohms: on at least one surface.
  • Type-L2 (Antistatic): Inner liners made from materials with surface resistivity between 1.0 x 10⁹ and 1.0 x 10^12 Ohms: on at least one surface.
  • Type-L3: Inner liners made from materials with surface resistivity of greater than 1.0 x 10^12: and with breakdown voltage less than 4kv.
Type of FIBC L-1 L-2 L-3
Type B Not permissible Permissible Permissible
Type C Permissible Permissible Not permissible
Type D Not permissible Permissible Not permissible

do you have any
question?

  • Liner Options
    Liner Types
    • ❏ Conductive
    • ❏ Form fit
    • ❏ Lay-flat
    • ❏ Food-grade
    • ❏ Flanged
    • ❏ Suspended
    • ❏ Baffled
    • ❏ Allumnium
    Attachment Processes
    • ❏ Loosely Inserted
    • ❏ Glued
    • ❏ Tabbed
    • ❏ Glued & Tabbed
    • ❏ Flanged
